Square Tape Clamp

For connection of flat lightning conductors in straight crossovers or T-Junctions.

A MODEL

For above ground connections of copper tape

4 Products

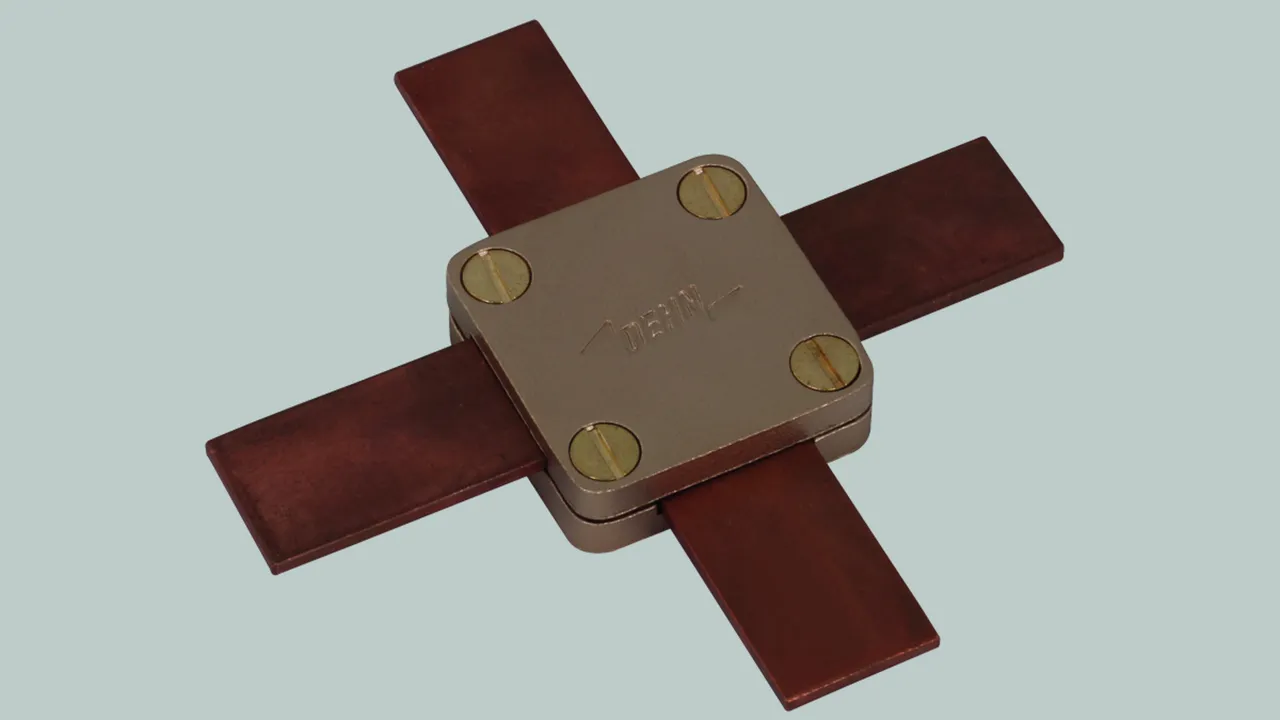

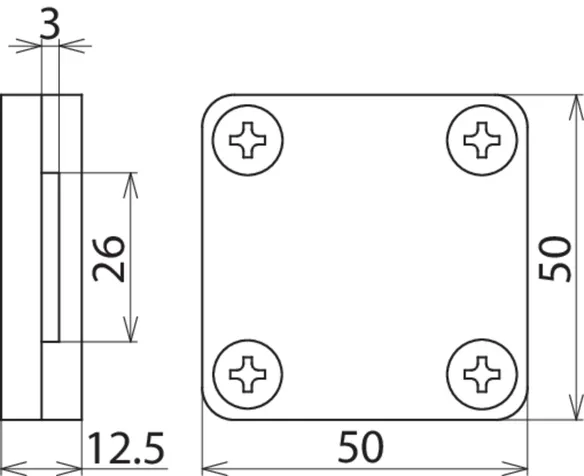

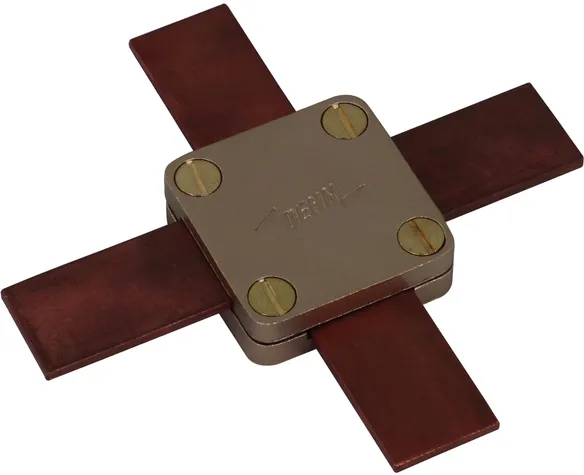

Part No. 118203 STCO 25X3 GM V2

GTIN 4013364298033, Customs tariff No. (EU): , Gross weight: 170.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Dimensions for 25 x 3 mm tape
Approvals Tested acc. IEC / BS EN 62561-1 class H

Product 118203 was added to Notepad.

Go to Notepad

Product 118203 was added to the cart.

Go to Web-Shop

Part No. 118204 STCO 25X6 GM V2

GTIN 4013364357617, Customs tariff No. (EU): , Gross weight: 280.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Dimensions for 25 x 6 mm tape
Approvals Tested acc. IEC / BS EN 62561-1 class H

Product 118204 was added to Notepad.

Go to Notepad

Product 118204 was added to the cart.

Go to Web-Shop

Part No. 118206 STCO 50X4 GM V2

GTIN 4013364357693, Customs tariff No. (EU): , Gross weight: 660.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Dimensions for 50 x 4 mm tape
Approvals Tested acc. IEC / BS EN 62561-1 class H

Product 118206 was added to Notepad.

Go to Notepad

Product 118206 was added to the cart.

Go to Web-Shop

Part No. 118207 STCO 50X6 GM V2

GTIN 4013364359260, Customs tariff No. (EU): , Gross weight: 660.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Dimensions for 50 x 6 mm tape
Approvals Tested acc. IEC / BS EN 62561-1 class H

Product 118207 was added to Notepad.

Go to Notepad

Product 118207 was added to the cart.

Go to Web-Shop

B MODEL

For above ground connections of aluminium tape

1 Product

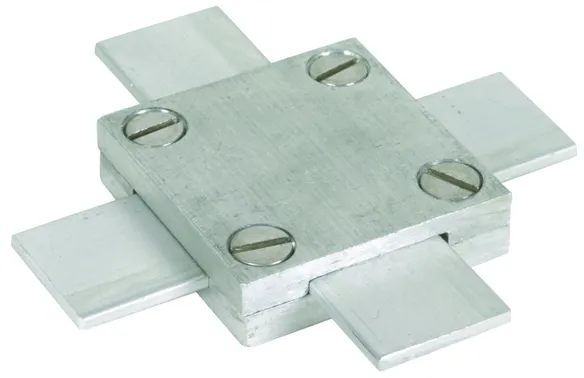

Part No. 118209 STC BAL FL 25X3 ALA

GTIN 4013364357464, Customs tariff No. (EU): , Gross weight: 50.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Aluminium Alloy
Dimensions for 25 x 3 mm tape
Approvals Tested acc. IEC / BS EN 62561-1 class H

Product 118209 was added to Notepad.

Go to Notepad

Product 118209 was added to the cart.

Go to Web-Shop

C MODEL

For above ground connections of copper tape – parallel, cross, T-joints.

4 Products

Part No. 118607 STRCO 25X3 16 GM

GTIN 4013364357754, Customs tariff No. (EU): , Gross weight: 240.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Dimensions for 25 x 3 mm tape, 16 mm2 conductor
Approvals Tested acc. IEC / BS EN 62561-1 class H
Other conductors dimension available upon request.

Product 118607 was added to Notepad.

Go to Notepad

Product 118607 was added to the cart.

Go to Web-Shop

Part No. 118609 STRCO 25X3 50 GM

GTIN 4013364431157, Customs tariff No. (EU): , Gross weight: 210.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Dimensions for 25 x 3 mm tape, 50 mm2 conductor
Approvals Tested acc. IEC / BS EN 62561-1 class H
Other conductors dimension available upon request.

Product 118609 was added to Notepad.

Go to Notepad

Product 118609 was added to the cart.

Go to Web-Shop

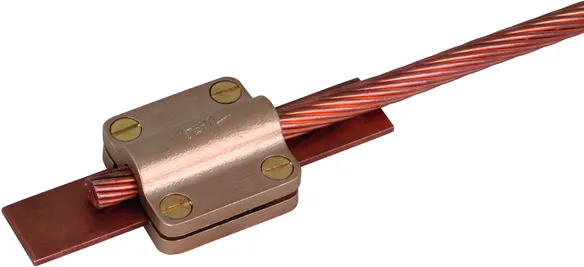

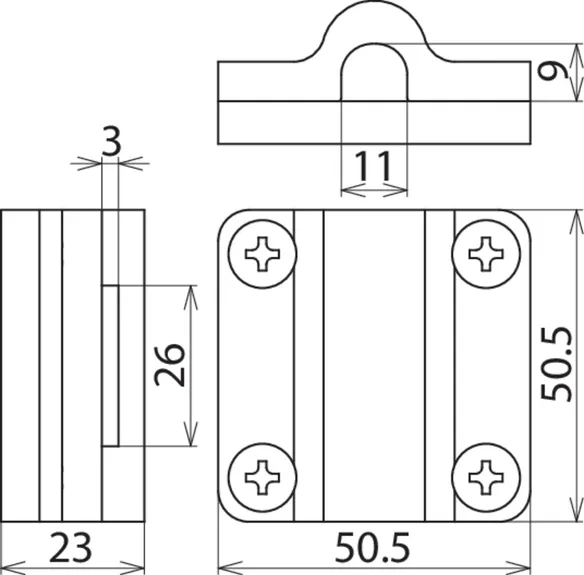

Part No. 118610 STRCO 25X3 70 GM

GTIN 4013364298095, Customs tariff No. (EU): , Gross weight: 220.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Dimensions for 25 x 3 mm tape, 70 mm2 conductor
Approvals Tested acc. IEC / BS EN 62561-1 class H
Other conductors dimension available upon request.

Product 118610 was added to Notepad.

Go to Notepad

Product 118610 was added to the cart.

Go to Web-Shop

Part No. 118611 STRCO 25x3 95CSA GM

GTIN 4013364357761, Customs tariff No. (EU): , Gross weight: 390.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Dimensions for 25 x 3 mm tape, 95 mm2 conductor
Approvals Tested acc. IEC / BS EN 62561-1 class H
Other conductors dimension available upon request.

Product 118611 was added to Notepad.

Go to Notepad

Product 118611 was added to the cart.

Go to Web-Shop
